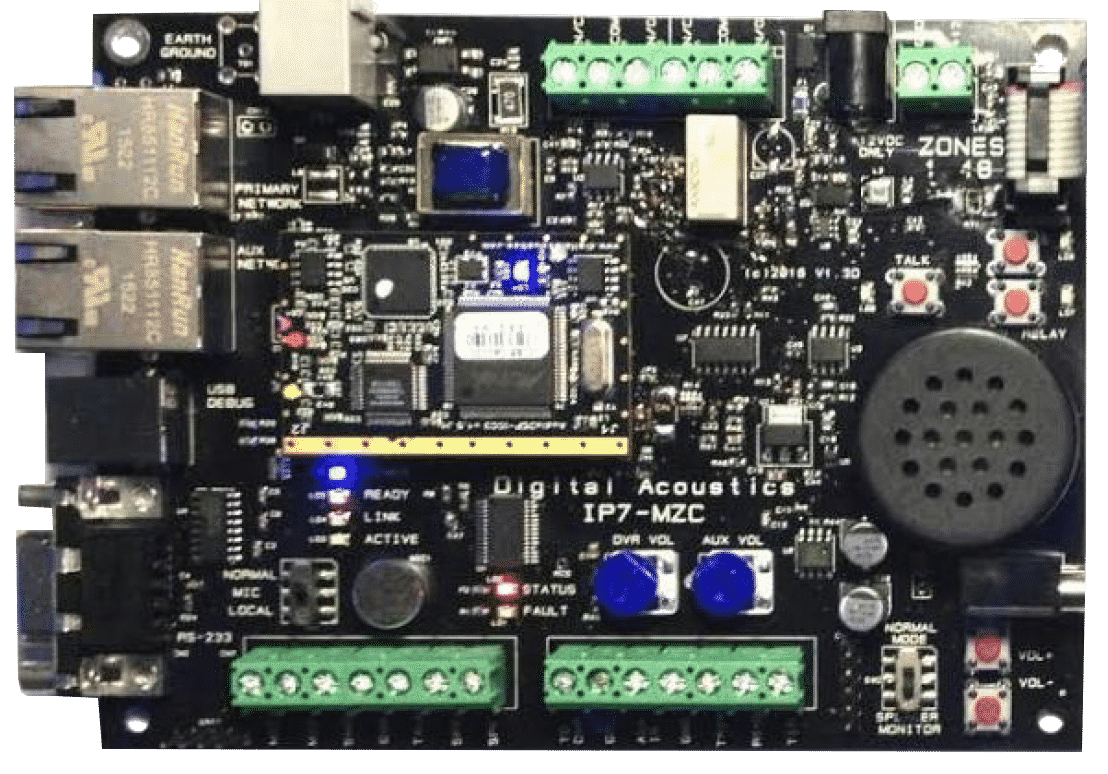

The IP7
The IP7 Multi‐Zone Controller from Communication Services Solutions is a industry‐leading IP endpoint developed to converge multiple analog zones using a single IP connection. Mass Notification deployments can reach up to 48 paging zones simultaneously, individually, or in groups. Central stations can manage 2‐way audio in multiple locations over just one VoIP connection. This next‐generation device eliminates costly telephone land‐lines and opens the door to future developments and advancements in VoIP telephony and remote security applications.
Hardware
- Stateful firewall throughput: 250 Mbps
- Recommended maximum clients: 50
- Small form factor
Cloud-based centralized management
- Managed centrally over the web
- Classifies applications, users and devices
- Zero-touch, self-provisioning deployments
Key Features
- Certified for use with Aeonix Dispatch Console
- Expandable from 1 to 48 zones via
single SIP or FOCUS IP connection - Supports Paging, Listening, and Full
- Duplex two‐way communications
- Individual mic gain & speaker volume
control (digital and physical) - Analog phone support
- DVR Monitor line outputs
- On‐board & remote diagnostics
- Ideal for wide‐area paging deployments
Networking and security
- Stateful firewall
- Auto VPN™ self-configuring site-to-site VPN
- Active Directory integration
- Identity-based policies
- Client VPN (IPsec)
- 3G / 4G failover via USB modem
Traffic shaping and application management
- Layer 7 application visibility and traffic shaping
- Application prioritization
MX-64
Network and Security Services
- Stateful firewall, 1:1 NAT, DHCP, DMZ, static routing
- Identity-based policies
- Auto VPN™ self-configuring site-to-site VPN
- Client VPN (IPsec)
- User and device quarantine
- VLAN support and DHCP services
Advanced Security Services
- Content filtering (Webroot BrightCloud CIPA-compliant URL database)
- Web search filtering (including Google and Bing SafeSearch)
- YouTube for Schools
- Intrusion prevention (SourceFire Snort based)
- Antivirus and antiphishing filtering (Kaspersky SafeStream II engine)
- Requires Advanced Security License
WAN Performance Management
- WAN link aggregation
- Application level (Layer 7) traffic analysis and shaping
- Automatic Layer 3 failover (including VPN connections)
- WAN uplink selection based on traffic type
Monitoring and Management
- Web based management and configuration
- Throughput, connectivity monitoring and alerts
- Network asset discovery and user identification
- Built-in network-wide reporting, monitoring and alerts
- Centralized policy management
- Real-time diagnostic and troubleshooting over the web
- Automatic firmware upgrades and security patches
- Searchable network-wide event logs
Interfaces
- WAN: 1 × 1 GbE
- LAN: 4 × 1 GbE (1 optionally available for WAN connectivity)
- USB: 1 × USB 2.0 for 3G/4G failover (supported devices)
Performance
- Stateful firewall throughput: 250 Mbps
- VPN throughput: 100 Mbps
- Recommended for small branches (up to 50 users)
Power
- Single 18W power supply
Environment
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5 to 95% non-condensing
